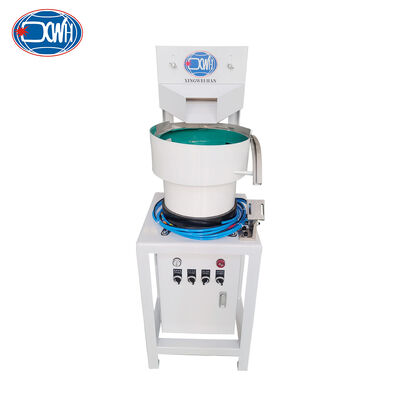

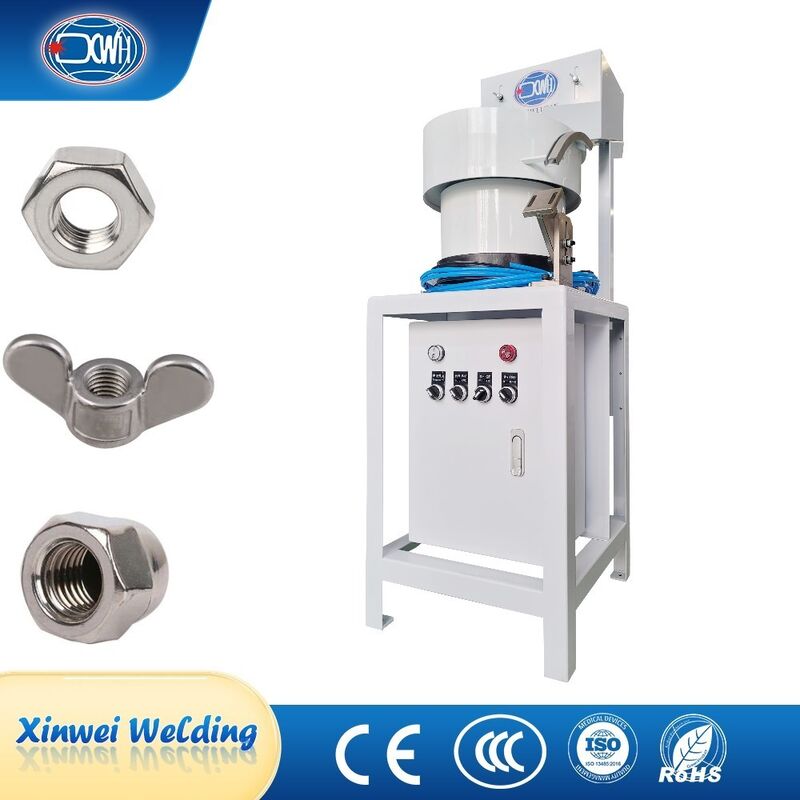

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder

Automatic Weld Nuts Rotary Bowl Vibratory Linear Wing Nut Screw Vibration Feeder

Product Introduction:

Nut conveyor is the preferred solution for large-scale and repetitive threaded connection processes. It is widely used in the automotive industry (engine, chassis, wheel hub assembly), home appliance manufacturing (washing machines, air conditioners, microwave ovens), electronic communication (server chassis, communication base stations), as well as furniture and hardware industries. It can play an irreplaceable role in any scenario that requires efficient and reliable completion of a large number of nut locking tasks, and has extremely high requirements for tightening quality and consistency.

Features:

Technical Parameters:

General Structures:

Detailed Images:

Transportation Pipeline: It is usually a flexible hose made of polyurethane or nylon material, with quick couplings at both ends. As an exclusive track connecting the host and the workstation. After the separated individual nuts enter the pipeline, they will be pushed by compressed air (blowing type) or mechanical mechanism (pushing type) that opens instantly, flying at high speed inside the pipeline and reaching the feeding nozzle at the end. Its flexibility ensures that it can bend freely with the robotic arm or moving mechanism.

Control System: The core is usually a programmable logic controller (PLC) or embedded microprocessor. It is the 'central nervous system' of the device. Receive instructions from various sensors and production line controllers, and then issue precise commands to control the start and stop of the vibration plate, the speed of direct vibration, the rhythm of the separation mechanism, and the opening/closing of the air valve. It can also perform basic fault diagnosis, such as material shortage, blockage, and delivery timeout, and issue sound and light alarms.

Direct Vibration Feeder: A linear vibration track, usually separated from but tightly connected to the vibration disc base. It serves as a 'buffer and acceleration channel'. Receive the directional nut gushing out from the outlet of the vibrating disc, and through its own linear vibration, smoothly and continuously transport the nut to the next stage - the separation mechanism. It can effectively eliminate congestion at the outlet of the vibrating disc and provide stable and uniform nut flow for separation.

Pneumatic System: Including gas source interface, filter, pressure reducing valve, oil mist device (triple piece), and solenoid valve. The 'power muscles' that make up the device. Provide clean, dry, and pressure stable compressed air. This airflow is both the "power source" that drives the nut to move at high speed inside the pipeline, and may also be the "driver" that drives the cylinder type separation mechanism.

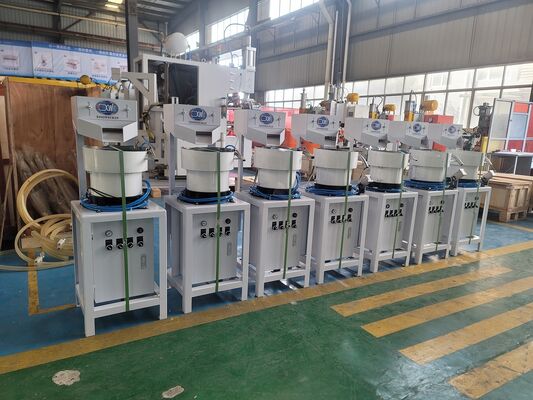

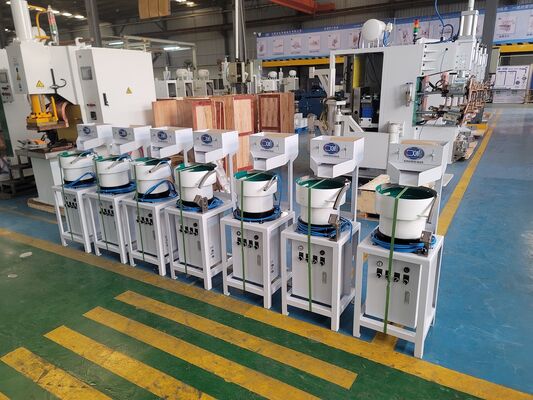

Scene Images:

Application:

Supporting Point Projection Welding Machines:

Double Heads Capacitor Energy Storage Point Projection Welding Machine

FAQ:
